Hazardous-area imaging

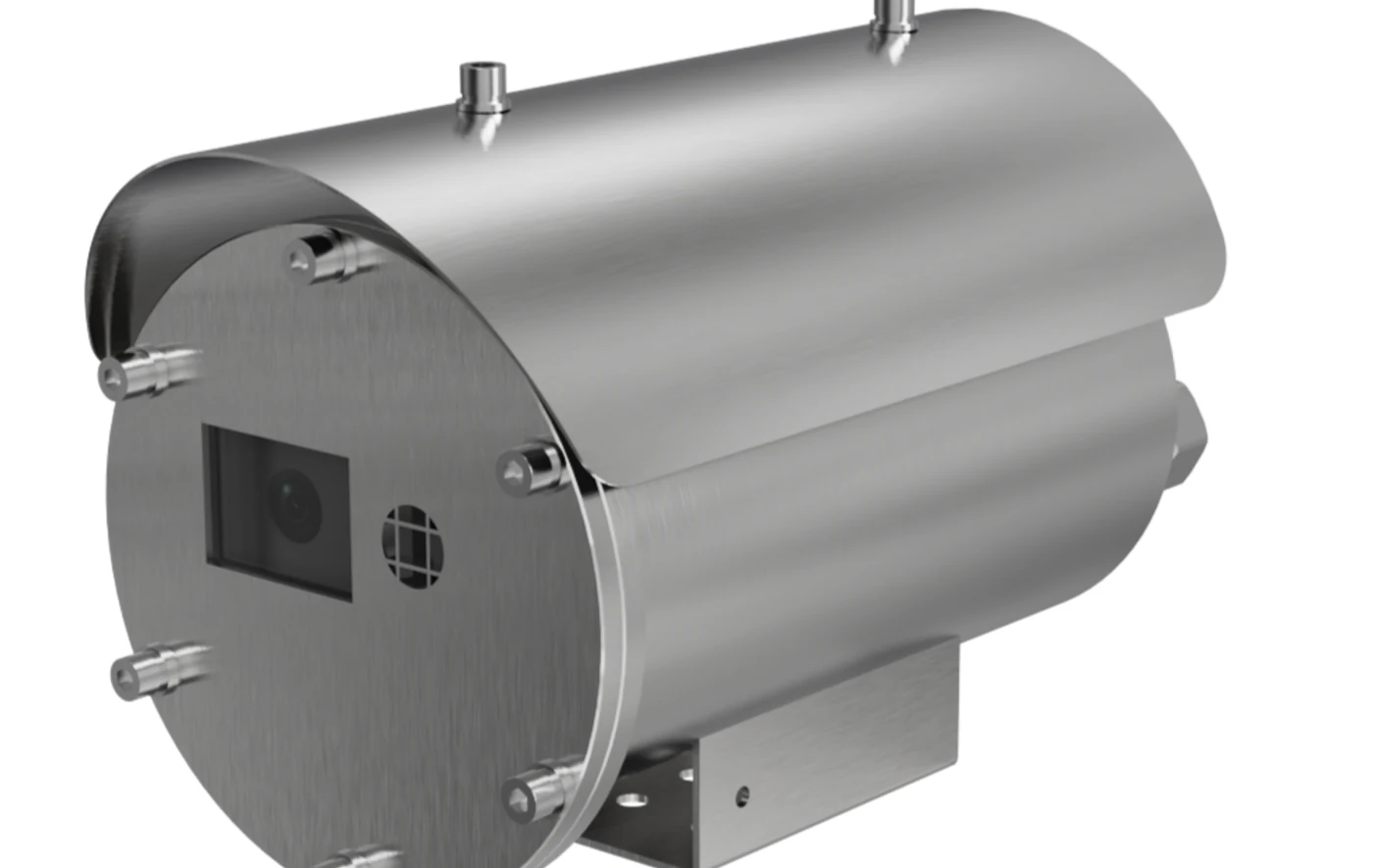

AI Dual-Spectral Ex Camera MK I
A rugged dual-spectral platform with IIC / IIIC explosion-proof design, IP68 ingress protection and real-time temperature measurement for high-risk facilities.
Ex db IIC T6 Gb IP68 protection 640 x 512 thermal -20°C to 60°C
Industrial intelligence platform
Operational role
Hazardous-area imaging
Built for hazardous-area inspection where sensing continuity and enclosure integrity are non-negotiable. Its thermal channel supports early warning and remote verification around process equipment, storage and transfer points.
Key specifications
AI Dual-Spectral Ex Camera MK I
Industrial intelligence platform
01
Camera
- Image sensor
- 1/2.8" 2MP Progressive Scan CMOS
- Max image size
- 1920 x 1080
- Min illumination
- Color: 0.08 Lux
- Shutter
- 1/25 s to 1/100,000 s
- WDR
- True WDR
- Day/night
- IR cut filter with auto switch
- Angle adjustment
- Pan: 0-360°; Tilt: -90-90°; Rotation: 0-360°
02
Lens
- Focal length & FOV
- 2.7-10.8 mm, horizontal FOV: 104.8°-52.4°, vertical FOV: 55.8°-27.9°, diagonal FOV: 129.8°-31.0°
- Aperture
- F1.6
- Optical zoom
- 4x
03
Thermal module
- Image sensor
- Vanadium oxide uncooled focal plane arrays
- Resolution
- 256 x 192, 384 x 288, 640 x 512 (optional)
- Response waveband
- 8-14 μm
- Measurement range
- -20°C to 650°C
- Measurement accuracy
- ±2°C or ±2%
04
AI analytics
- Embedded AI SoC
- Quad-core Cortex-A55 @ 2.0 GHz
- NPU compute
- 1 TOPS
- Smart detection
- Human, vehicle, fire point, smoke
- Measurement presets
- Max 300 presets
05
Network
- Protocols
- IPv4/IPv6, HTTP, HTTPS, RTSP, RTMP, ONVIF
- API
- SDK, CGI
- Interoperability
- ONVIF (Profile S/G/T)
06
Interface
- Network
- 2 x RJ45 10M/100M Ethernet
- Alarm
- 1 in / 1 out
- Audio
- 1 in / 1 out
- Other
- RS-485, CVBS
07
PTZ
- Rotation speed
- Pan: 0.1°-30°/s; Tilt: 0.1°-25°/s
- Preset
- 255
08
General
- Power
- DC 12V, max 10W
- Housing
- 6061 anodized aluminum
- Dimensions
- 280 x 150 x 185 mm
- Protection
- IP68
- Ex rating
- Ex db IIC T6 Gb; Ex tb IIIC T80°C Db
- Operating temperature
- -20°C to 60°C
- Weight
- Approx. 8.5 kg
