Edge computing

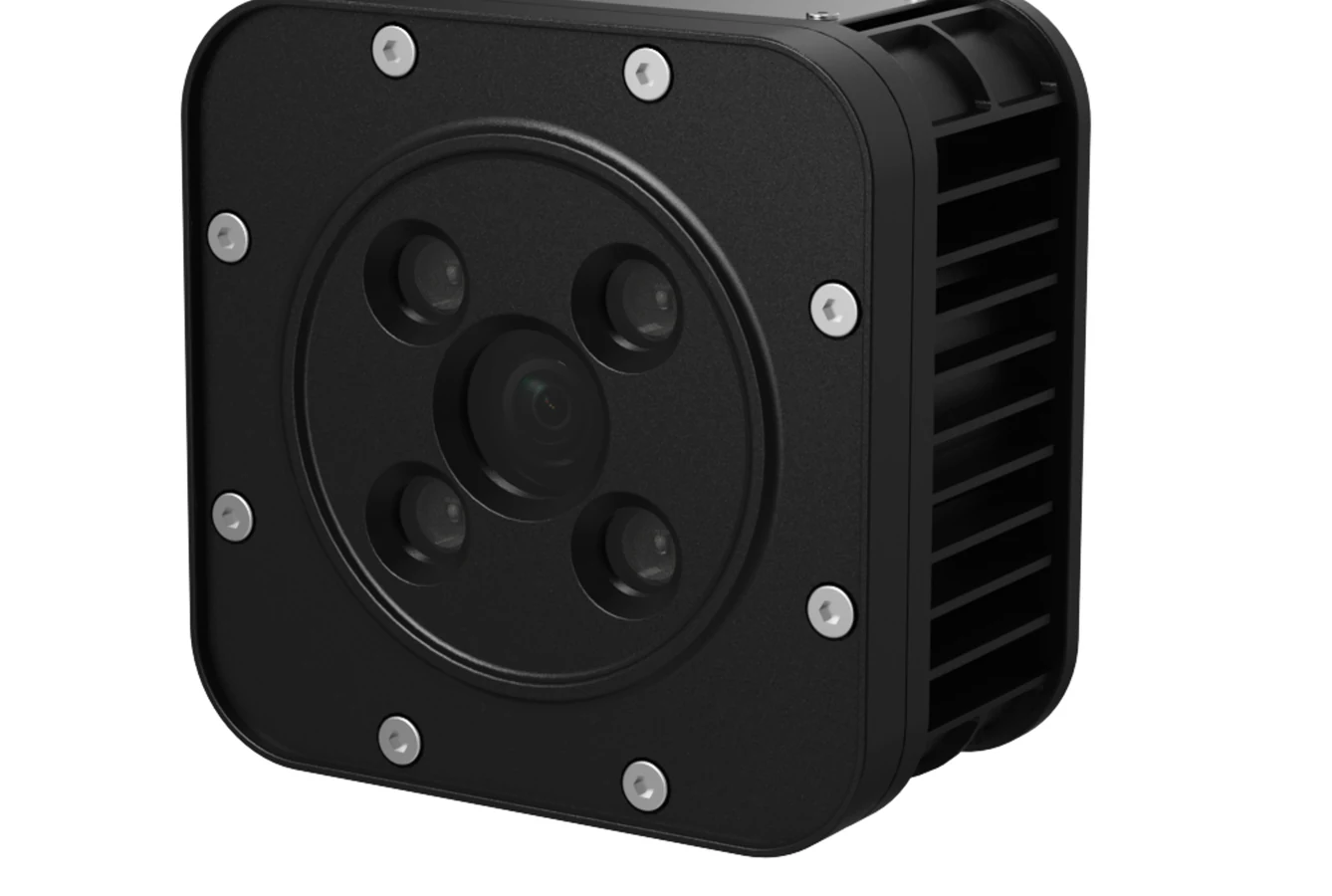

AI Edge Computing Ex Camera MK II
A compact explosion-proof camera with embedded NPU acceleration for smart monitoring at the edge, delivering real-time 4MP imaging without depending on a remote compute layer.
1 TOPS NPU 2560 x 1440 @ 30 fps Ex db IIC T6 Gb IP68 (1 m / 45 min)
Industrial intelligence platform
Operational role
Edge computing
Best suited to distributed sites that need decisions close to the source. Embedded inference can classify events locally, reduce uplink load and keep monitoring responsive when central connectivity is limited.
Key specifications
AI Edge Computing Ex Camera MK II
Industrial intelligence platform
01
Camera
- Image sensor
- 1/1.79" 4MP Progressive Scan CMOS
- Max image size
- 2560 x 1440
- Frame rate
- Up to 30 fps
- Min illumination
- Color: 0.001 Lux
- Shutter
- 1/25 s to 1/100,000 s
- WDR
- True WDR
- Day/night
- IR cut filter with auto switch
02
Lens
- Focal length
- 2.8 mm, 4 mm, 6 mm, 8 mm, 12 mm (optional)
- Aperture
- F1.6
03
AI analytics
- Embedded AI SoC
- Quad-core Cortex-A55 @ 2.0 GHz
- NPU compute
- 1 TOPS
- Smart detection
- Human, vehicle, fire point, smoke
- Measurement presets
- Max 300 presets
04
Network
- Protocols
- IPv4/IPv6, HTTP, HTTPS, RTSP, RTMP, ONVIF
- API
- SDK, CGI
- Interoperability
- ONVIF (Profile S/G/T)
05
Interface
- Network
- 1 x RJ45 10M/100M Ethernet
- Alarm
- 1 in / 1 out
- Audio
- 1 in / 1 out
- Other
- RS-485
06
PTZ
- Rotation speed
- Pan: 0.1°-30°/s; Tilt: 0.1°-25°/s
- Preset
- 255
07
General
- Power
- DC 12V, max 10W
- Illuminator
- White light
- Housing
- 6061 anodized aluminum
- Dimensions
- 170 x 150 x 85 mm
- Protection
- IP68 (1 m, 45 min)
- Ex rating
- Ex db IIC T6 Gb; Ex tb IIIC T80°C Db
- Operating temperature
- -20°C to 60°C
- Weight
- Approx. 2.6 kg
